Autocomplete

• Using collection or collectionAsync

• Filter Options (AutocompleterOption interface)

• Using Remote API

• Force User Input

• Update Filters Dynamically

• Animated Gif Demo

Demo

Demo Page | Demo Component

Introduction

AutoComplete is a functionality that let the user start typing characters and the autocomplete will try to give suggestions according to the characters entered. The collection can be a JSON files (collection of strings or objects) or can also be an external resource like a JSONP query to an external API. For a demo of what that could look like, take a look at the animated gif demo below.

We use an external lib named Autocomplete (aka autocompleter on npm) by Kraaden.

Using collection or collectionAsync

If you want to pass the entire list to the AutoComplete (like a JSON file or a Web API call), you can do so using the collection or the collectionAsync (the latter will load it asynchronously). You can also see that the Editor and Filter have almost the exact same configuration (apart from the model that is obviously different).

Component

<script setup lang="ts">
import { type Column, Filters, Formatters, SlickgridVue, type VanillaCalendarOption } from 'slickgrid-vue';
import { onBeforeMount, type Ref } from 'vue';

const gridOptions = ref<GridOption>();
const columnDefinitions: Ref<Column[]> = ref([]);
const dataset = ref<any[]>([]);

onBeforeMount(() => {
  defineGrid();
});

function defineGrid() {
  columnDefinitions.value = [
    {
      id: 'countryOfOrigin', name: 'Country of Origin', field: 'countryOfOrigin',
      formatter: Formatters.complexObject,
      dataKey: 'code', // our list of objects has the structure { code: 'CA', name: 'Canada' }, since we want to use the code`, we will set the dataKey to "code"
      labelKey: 'name', // while the displayed value is "name"
      type: 'object',
      sorter: Sorters.objectString, // since we have set dataKey to "code" our output type will be a string, and so we can use this objectString, this sorter always requires the dataKey
      filterable: true,
      sortable: true,
      minWidth: 100,
      editor: {
        model: Editors.autoComplete,
        customStructure: { label: 'name', value: 'code' },
        collectionAsync: fetch('assets/data/countries.json'), // this demo will load the JSON file asynchronously
        onInstantiated: (instance) => console.log('instance', instance), // get instance from 3rd party lib
      },
      filter: {
        model: Filters.autoComplete,
        customStructure: { label: 'name', value: 'code' },
        collectionAsync: fetch('assets/data/countries.json'),
        onInstantiated: (instance) => console.log('instance', instance), // get instance from 3rd party lib
      }
    }
  ];

  gridOptions.value = {/*...*/};

  dataset.value = getData();
}
</script>

Filter Options (AutocompleterOption interface)

All the available options that can be provided as filter options to your column definitions can be found under this AutocompleterOption interface and you should cast your filter options to that interface to make sure that you use only valid options of the autocomplete library.

filter: {
  model: Filters.autocompleter,
  // previously known as `filterOptions` for < 9.0
  options: {
    minLength: 3,
  } as AutocompleterOption
}

Using External Remote API

You could also use external 3rd party Web API (can be JSONP query or regular JSON). This will make a much shorter result since it will only return a small subset of what will be displayed in the AutoComplete Editor or Filter. For example, we could use GeoBytes which provide a JSONP Query API for the cities of the world, you can imagine the entire list of cities would be way too big to download locally, so this is why we use such API.

Component

<script setup lang="ts">
import { type Column, Filters, Formatters, SlickgridVue, type VanillaCalendarOption } from 'slickgrid-vue';
import { onBeforeMount, type Ref } from 'vue';

const gridOptions = ref<GridOption>();
const columnDefinitions: Ref<Column[]> = ref([]);
const dataset = ref<any[]>([]);

onBeforeMount(() => {
  defineGrid();
});

function defineGrid() {
  columnDefinitions.value = [
    {
      id: 'cityOfOrigin', name: 'City of Origin', field: 'cityOfOrigin',
      filterable: true,
      minWidth: 100,
      editor: {
        model: Editors.autoComplete,
        placeholder: 'search city', //  you can provide an optional placeholder to help your users

        // use your own autocomplete options, instead of $.ajax, use http
        // here we use $.ajax just because I'm not sure how to configure http with JSONP and CORS
        // previously known as `filterOptions` for < 9.0
        options: {
          minLength: 3, // minimum count of character that the user needs to type before it queries to the remote
          source: (request, response) => {
            $.ajax({
              url: 'http://gd.geobytes.com/AutoCompleteCity',
              dataType: 'jsonp',
              data: {
                q: request.term // geobytes requires a query with "q" queryParam representing the chars typed (e.g.:  gd.geobytes.com/AutoCompleteCity?q=van
              },
              success: (data) => response(data)
            });
          }
        },
      },
      filter: {
        model: Filters.autoComplete,
        // placeholder: '&#128269; search city', // &#128269; is a search icon, this provide an option placeholder

        // use your own autocomplete options, instead of $.ajax, use http
        // here we use $.ajax just because I'm not sure how to configure http with JSONP and CORS
        options: {
          minLength: 3, // minimum count of character that the user needs to type before it queries to the remote
          source: (request, response) => {
            $.ajax({
              url: 'http://gd.geobytes.com/AutoCompleteCity',
              dataType: 'jsonp',
              data: {
                q: request.term
              },
              success: (data) => {
                response(data);
              }
            });
          }
        },
      }
    }
  ];

  gridOptions.value = {/*...*/};
}
</script>

Autocomplete - force user input

If you want to add the autocomplete functionality but want the user to be able to input a new option, then follow the example below:

columnDefinitions.value = [{
  id: 'area',
  name: 'Area',
  field: 'area',
  editor: {
    model: Editors.autocompleter,
    onInstantiated: (instance) => console.log('instance', instance), // get instance from 3rd party lib
    // previously known as `filterOptions` for < 9.0
    options: {
      minLength: 0,
      forceUserInput: true,
      fetch: (searchText, updateCallback) => {
        updateCallback(areas); // add here the array
      },
    }
  },
}];

You can also use the minLength to limit the autocomplete text to 0 characters or more, the default number is 3.

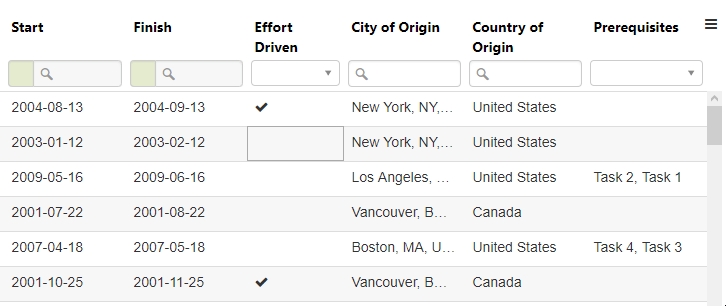

Animated Gif Demo
